_td_BPW_SB3745_8-9_with-seal BPW SB3745 8-9 Tonnes (with Seal in Thrust Washer)

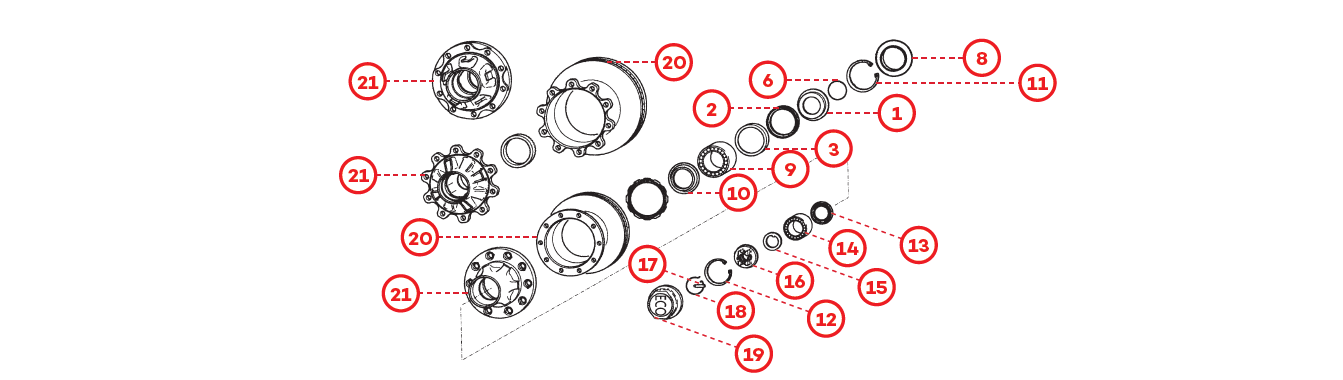

Click on a numbered part in the diagram to jump to its details below

25 parts

#	Image	Part Details	Add to Order
1		A9701 THRUST WASHER ECO TYPE 6.5-9T Part #: A9701
2		A9710 SEAL ECO TYPE 6.5-9 T Part #: A9710
3		A9712 RING ECO TYPE 6.5-9 T Part #: A9712
5		KLTH0217 RING NYLON OLD 104/157X3.5MM Part #: KLTH0217
6		KLTH0200 O RING 90X3MM Part #: KLTH0200
7		KLTH0203 O RING OLD 100X4MM Part #: KLTH0203
8		KLTH0178 DIRT SEAL 103/147 X 15MM Part #: KLTH0178
9		A8907 Wheel Bearing 33116 Part #: A8907
10		A9720 DUST WASHER ECO TYPE 6.5-9T Part #: A9720
11		A9716 CIRCLIP ECO TYPE 6.5-9T Part #: A9716
12		A9718 CIRCLIP ECO TYPE 6.5-9 T Part #: A9718
13		A9722 THRUST WASHER ECO TYPE 6.5-9T Part #: A9722
14		KLTH0207 OUTER BEARING (32310) Part #: KLTH0207
15		A9703 WASHER ECO TYPE 6.5-9T Part #: A9703
16		A9705 AXLE END NUT ECO TYPE 6.5-9T Part #: A9705
17		A9707 BOLT 8X35MM Part #: A9707
18		A9708 SPRING RING 54X2MM Part #: A9708
19		A9724 HUB CAP ECO M125X2MM A/F110 Part #: A9724
		A9726 HUB CAP ECO 135X2MM A/F110 Part #: A9726
20		KLTE0054 Brake Disc to suit BPW Part #: KLTE0054
		KLTE0139 Brake Disc to suit BPW Part #: KLTE0139
		KLTE0159 BRAKE DISC TO SUIT BPW Part #: KLTE0159
21		KLTH0078 BARE HUB LIGHTWEIGHT Part #: KLTH0078
		KLTH0212 HUB LIGHTWEIGHT 8 STUD Part #: KLTH0212
		KLTH0213 BARE HUB LIGHTWEIGHT 10 STUD Part #: KLTH0213
