_td_BPW_SN3620_360x200_95_on BPW SN3620 1995 on

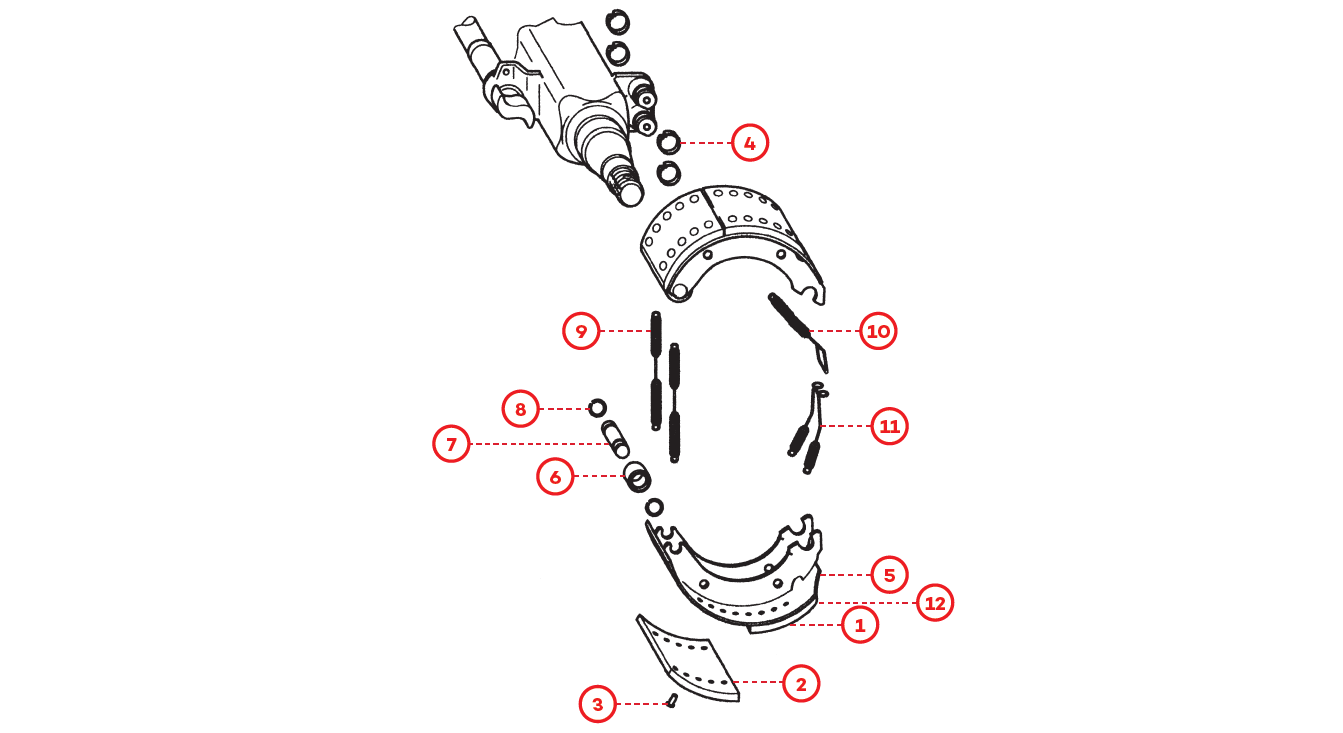

Parts Diagram
Click on a numbered part in the diagram to jump to its details below
Parts List
15 parts| # | Image | Part Details | Add to Order |
|---|---|---|---|
| 1 |
|
R2156 BRAKE LINING SINGLE BC100/1+1 WVA19902
Part #: R2156
|
|
|
|
UNBL0001 BC100/101-1 BRAKE LINING SET WVA19902
Part #: UNBL0001
|
||
| 2 |
|
R2155 BRAKE LINING SINGLE BC101/1+1 WVA19903
Part #: R2155
|
|
| 3 |
|
R0981 BOX 1000 8X15 RIVET DIN7338B ST
Part #: R0981
|
|
| 4 |
|
A9599 C CLIP EQUIV BPW
Part #: A9599
|
|
| 5 |
|
A3026 Brake Shoe - Unlined - 360x200 Q/C 95 Series
Part #: A3026
|
|
|
|
LBS0010 Lined Brake Shoe BC100/101 360X200 Wheel Set
Part #: LBS0010
|
||
| 6 |
|
A9598 BRAKE SHOE SLEEVE 0533144020 EQUIV
Part #: A9598
|
|
| 7 |
|
A9597 BRAKE SHOE PIN 0308475240 EQUIV
Part #: A9597
|
|
| 8 |
|
A9596 RETAINER 0331070150 EQUIV
Part #: A9596
|
|
| 9 |
|
A9539 BRAKE SPRING 24.5/4/236MM
Part #: A9539
|
|
| 10 |
|
KLTH0054 RETENTION SPRING BPW 0339733070 EQUIV
Part #: KLTH0054
|
|
| 11 |
|
KLTH0055 RETENTION SPRING BPW 0339733060 EQUIV
Part #: KLTH0055
|
|
| 12 |
|
KLTH0263 BRAKE KIT FOR 2 SHOES 360X200 Q/F 95- BPW
Part #: KLTH0263
|
|
| 13 |
|
KLTH0277 Cam Roller Kit to suit BPW (Two Shoes)
Part #: KLTH0277
|
