Opposite handed part available
View A1481
Login to view pricing and stock information.
Next day delivery available
Quality assured parts
No description available for this product.
Specifications
- Length (mm) 572.00
- Weight (KG) 5.71
- Public Class AVAILABLE
- Available Stock 56

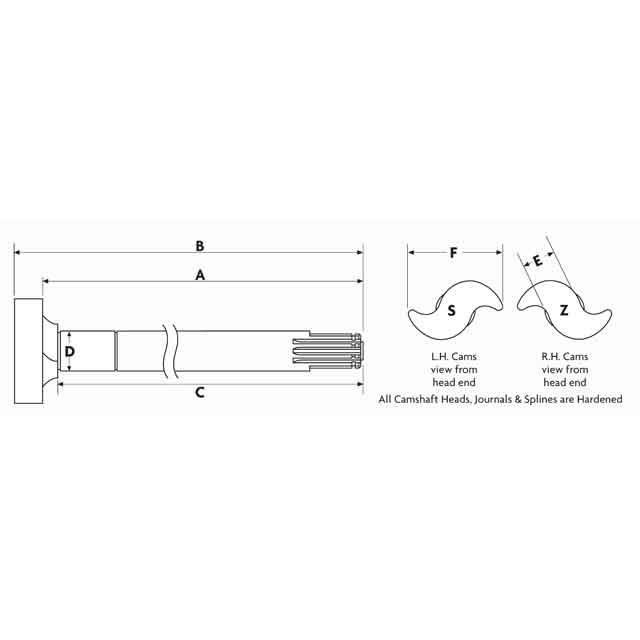

- Measurement A (mm) 545.00
- Measurement B (mm) 572.00
- Measurement C (mm) 527.50
- Measurement D (mm) 42.00
- Measurement E (mm) 28.00
- Measurement F (mm) 93.00
Steel
Forged with high quality carbon steel for strength and durability. Our raw material is sourced from a single steel mill with strict quality compliance certification process.
Head Profile
We machine our S camshaft head for enhanced fit along the curvature to provide consistent brake performance through its entire movement range.
Heat Treatment
We apply a heat treatment to head and spine for improved wear life. The camshaft splines have a Rockwell hardness level of 40-50 HRC.
Spline
Our camshaft spline is rolled (as opposed to milled) for increased durability by preserving the metal integrity. Our spline profile strictly adheres to the ANSI B92.1 standard to ensure a perfect fit with the slack adjusters and prevent slippage.
