_td_BPW_SB4345_Eco_Plus_8-9 BPW SB4345 Eco Plus 8-9 Tonnes

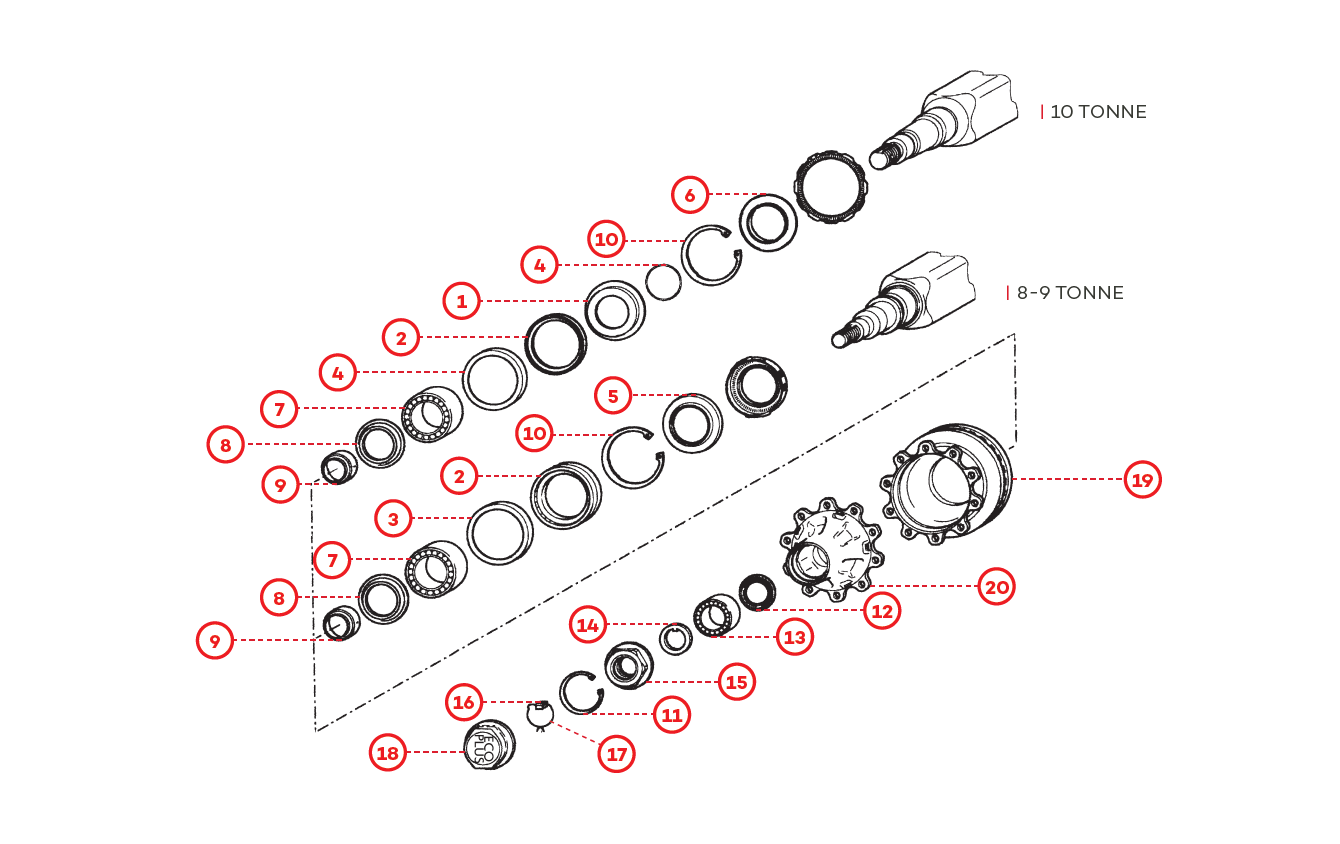

Parts Diagram
Click on a numbered part in the diagram to jump to its details below
Parts List
18 parts| # | Image | Part Details | Add to Order |
|---|---|---|---|
| 2 |
|
KLTH0177 OIL SEAL 120/157.5 X 20MM
Part #: KLTH0177
|
|
| 3 |
|
KLTH0180 RING 151/157.6 X 20MM
Part #: KLTH0180
|
|
| 5 |
|
KLTH0184 DIRT SEAL 122/160X8.7MM
Part #: KLTH0184
|
|
| 7 |
|
A8908 Wheel Bearing 33118
Part #: A8908
|
|
| 8 |
|
A9721 DUST WASHER ECO TYPE 10-12 T
Part #: A9721
|
|
| 9 |
|
KLTH0181 SEAL 67/95 X 49.5MM
Part #: KLTH0181
|
|
| 10 |
|
KLTH0176 CIRCLIP 158 X 4MM
Part #: KLTH0176
|
|
| 11 |
|
A9719 CIRCLIP ECO TYPE 10-12 T
Part #: A9719
|
|
| 12 |
|
KLTH0191 THRUST WASHER 71/108 X 8MM
Part #: KLTH0191
|
|
| 13 |
|
A1720 Wheel Bearing 33213
Part #: A1720
|
|
| 14 |
|
A9704 WASHER ECO TYPE 10-12T
Part #: A9704
|
|
| 15 |
|
BPAX0010 Axle End Nut - M52x2/AF95
Part #: BPAX0010
|
|
| 16 |
|
KLTH0190 RETAINER
Part #: KLTH0190
|
|
| 17 |
|
KLTH0185 SPRING RING 62 X 1.8MM
Part #: KLTH0185
|
|
| 18 |
|
KLTH0186 HUB CAP M136 X 2.5MM 110A/F
Part #: KLTH0186
|
|
| 19 |
|
KLTE0149 BPW Brake Disc
Part #: KLTE0149
|
|
| 20 |
|
KLTH0188 BARE HUB 10 STUD 8-9 TONNES BPW TYPE
Part #: KLTH0188
|
|
|
|
KLTH0452 HUB WITH BEARINGS TO SUIT BPW ECO-PLUS
Part #: KLTH0452
|
