_td_MERITOR_TA_AND_TAC Meritor TA and TAC

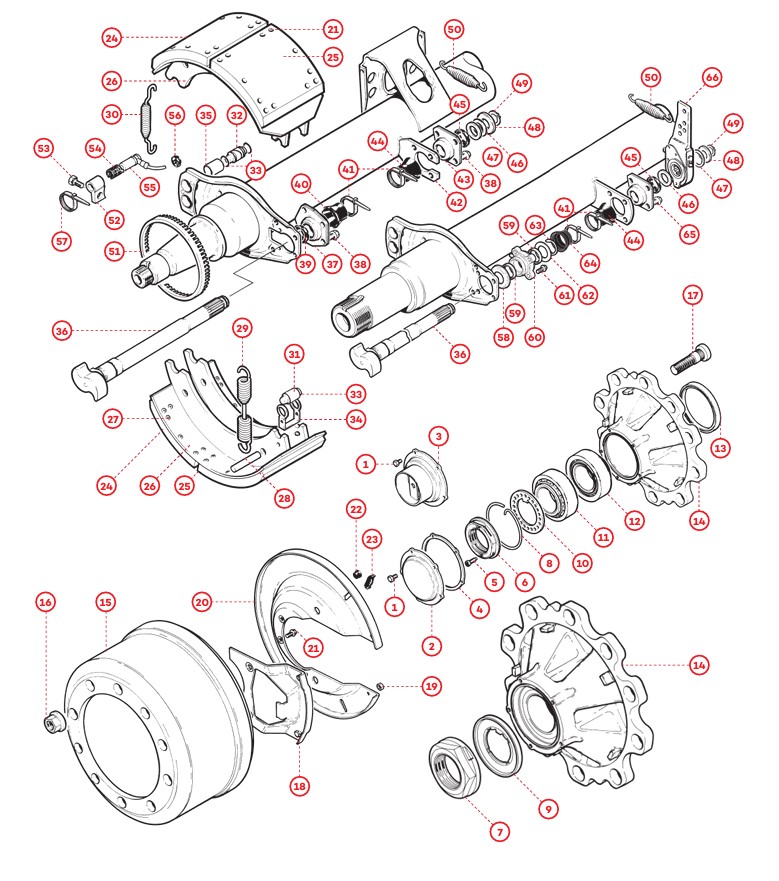

Parts Diagram

Click on a numbered part in the diagram to jump to its details below

Parts List

58 parts

#	Image	Part Details	Add to Order
1		A1986 HUB CAP SCREW Part #: A1986
		KLTE0200 Brake Disc to suit MERITOR Part #: KLTE0200
2		KLTH0142 HUB CAP TA TAC Part #: KLTH0142
3		KLTH0146 HUB CAP HUBODOMETER TA TAC Part #: KLTH0146
4		KLTH0147 HUB CAP GASKET TA TAC Part #: KLTH0147
5		A1991 LOCKING SCREW Part #: A1991
6		KLTH0140 PINCH NUT Part #: KLTH0140
7		KLTH0141 AXLE END NUT TAC Part #: KLTH0141
8		KLTH0145 RETAINING CLIP PACK OF 5 Part #: KLTH0145
9		KLTH0143 STAKE WASHER ASSEMBLY TAC Part #: KLTH0143
10		KLTH0144 RETAINING WASHER Part #: KLTH0144
11		A1790 WHEEL BEARING 218248/218210 Part #: A1790
13		A1904 Oil Seal to replace 21200321A Part #: A1904
14		KLTH0127 HUB ASSEMBLY C/W BEARINGS & HUB SEAL Part #: KLTH0127
15		A1770 BRAKE DRUM 420X180 Part #: A1770
		A1780 BRAKE DRUM 420X220 Part #: A1780
16		A1136 Wheel Nut M22X1.5 RHT 32mm A/F Part #: A1136
		A1139 WHEEL NUT I.S.O 32A/F CLOSED Part #: A1139
17		A2000 WHEEL STUD M22X1.5 RHT 98MM UH ISO SINGLE/TWIN WHEEL Part #: A2000
		KLTH0135 WHEEL BOLT M22 X 1.5 ALUM TWIN WHEELS Part #: KLTH0135
18		A1884 IN-FILL PLATE FOR A3044 TO AUG 1997 Part #: A1884
		KLTH0133 FILLER PLATE 420 X 180 APRIL 2000 ON Part #: KLTH0133
19		A1888 NUT Part #: A1888
20		A3044 DUST COVER SINGLE WHEEL 1 PIECE TO SUIT ROR TM/LM PRESSED Part #: A3044
22		A1854 BLANKING PLUG R O 9000 Part #: A1854
23		A1853 INSPECTION PLUG R O 9000 Part #: A1853
24		UNBL0015 FU4/5-4 BRAKE LINING SET WVA19370/WVA19369 Part #: UNBL0015
26		A3000 Brake Shoe 420x180mm - Q/F Part #: A3000
		A3010 BRAKE SHOE 420X220 Q/F Part #: A3010
28		A1611 RETAINING PIN (FOR A1609) Part #: A1611
29		A1609 Brake Return Spring - 35/5/227mm - Suits RO New Type Part #: A1609
30		A3020 BRAKE SHOE RETAINER SPRING Part #: A3020
31		A1615 Cam Roller 1.1-4 Diameter Part #: A1615
32		A3035 ANCHOR PIN C/W O-RINGS Part #: A3035
34		A3051 RETAINING CLIP (SINGLE) Part #: A3051
35		A1603 ANCHOR PIN BUSH STAINLESS Part #: A1603
38		A1852PK PACKET OF 10 DUST COVER SCREW R O 9000 Part #: A1852PK
39		A3042 CAMSHAFT INNER BOOT Part #: A3042
40		A3043 CAMSHAFT OUTER BOOT Part #: A3043
42		A1874 CAMSHAFT BRACKET R O 9000 Part #: A1874
43		A1811 Spherical Bearing Assembly - 900 Cam Bracket - Suits RO TM/9000, Hendrickson 2000 Part #: A1811
44		A1842 BOOT TO FIT ANCHOR 9000 SERIES Part #: A1842
45		A1843 BOOT(SHORT) TO FIT 9000 SERIES Part #: A1843
46		A1590 CAMSHAFT SPACER WASHER THICK Part #: A1590
47		A1595 CAMSHAFT SPACER WASHER THIN Part #: A1595
48		A1847 CAMSHAFT WASHER 9000 SERIES Part #: A1847
49		A1849 CIRCLIP 30MM DIA EXT 9000 Part #: A1849
50		A1848 Slack Adjuster Spring 26x2.8x148mm Part #: A1848
51		MTEX0003 EXCITER RING 100T Part #: MTEX0003
52		A3057 SENSOR MOUNTING BLOCK LM Part #: A3057
53		A3058 SCREW Part #: A3058
55		DFABS0003 ABS Sensor Angled 0.4m to suit DAF Part #: DFABS0003
56		A3061 BUSH Part #: A3061
57		CT3007B PKT 100 BLACK CABLE TIES 300 X 7.6MM Part #: CT3007B
61		KLTH0158 SCREW Part #: KLTH0158
63		KLTH0163 SNAP RING Part #: KLTH0163
65		KLTH0159 SCREW Part #: KLTH0159
66		4W1000 MEI Automatic Slack Adjuster LH/RH to suit MERITOR Part #: 4W1000
