_td_BPW_SB3745_Eco_Plus_10 BPW SB3745 Eco Plus 10 Tonnes

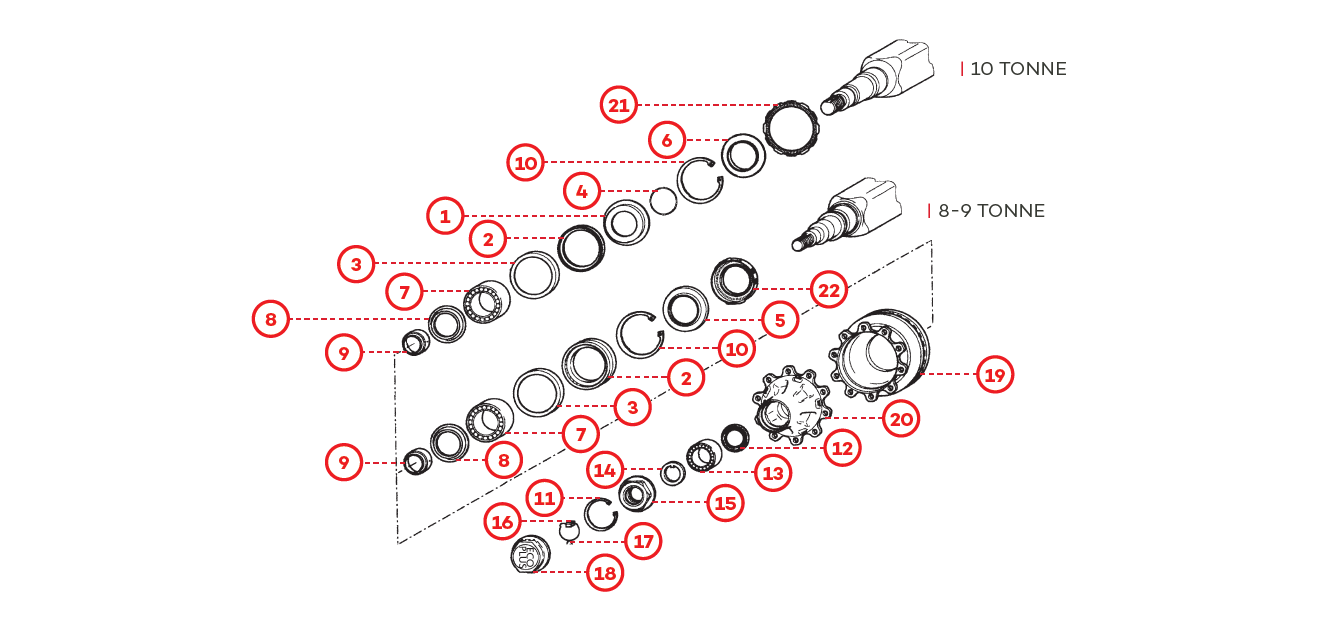

Click on a numbered part in the diagram to jump to its details below

25 parts

#	Image	Part Details	Add to Order
1		A9702 THRUST WASHER ECO TYPE 10-12T Part #: A9702
2		A9711 SEAL ECO TYPE 10-12 T Part #: A9711
3		A9713 RING ECO TYPE 10-12 T Part #: A9713
4		KLTH0201 O RING 100X3MM Part #: KLTH0201
6		KLTH0183 DIRT SEAL 133/168 X 15MM Part #: KLTH0183
7		A8908 Wheel Bearing 33118 Part #: A8908
8		A9721 DUST WASHER ECO TYPE 10-12 T Part #: A9721
9		KLTH0182 SEAL 67/93 X 90.5MM Part #: KLTH0182
10		A9717 CIRCLIP ECO TYPE 10-12 T Part #: A9717
11		A9719 CIRCLIP ECO TYPE 10-12 T Part #: A9719
12		KLTH0191 THRUST WASHER 71/108 X 8MM Part #: KLTH0191
13		KLTH0258 OUTER BEARING (33213) (EXTRA ROLLER) Part #: KLTH0258
14		A9704 WASHER ECO TYPE 10-12T Part #: A9704
15		BPAX0010 Axle End Nut - M52x2/AF95 Part #: BPAX0010
16		KLTH0190 RETAINER Part #: KLTH0190
17		KLTH0185 SPRING RING 62 X 1.8MM Part #: KLTH0185
18		KLTH0186 HUB CAP M136 X 2.5MM 110A/F Part #: KLTH0186
19		KLTE0054 Brake Disc to suit BPW Part #: KLTE0054
		KLTE0139 Brake Disc to suit BPW Part #: KLTE0139
		KLTE0159 BRAKE DISC TO SUIT BPW Part #: KLTE0159
		KLTE0173 Brake Disc to suit BPW Part #: KLTE0173
20		KLTH0214 HUB LIGHTWEIGHT 10 STUD Part #: KLTH0214
		KLTH0215 HUB LIGHTWEIGHT 8 STUD Part #: KLTH0215
21		BPEX0001 BPW eco plus F14 exciter ring 100T Part #: BPEX0001
		BPEX0008 ABS RING BOLT ON TYPE BPW SKH SKM ECO PLUS 2 Part #: BPEX0008
