_td_BPW_SN4220 BPW SN4220

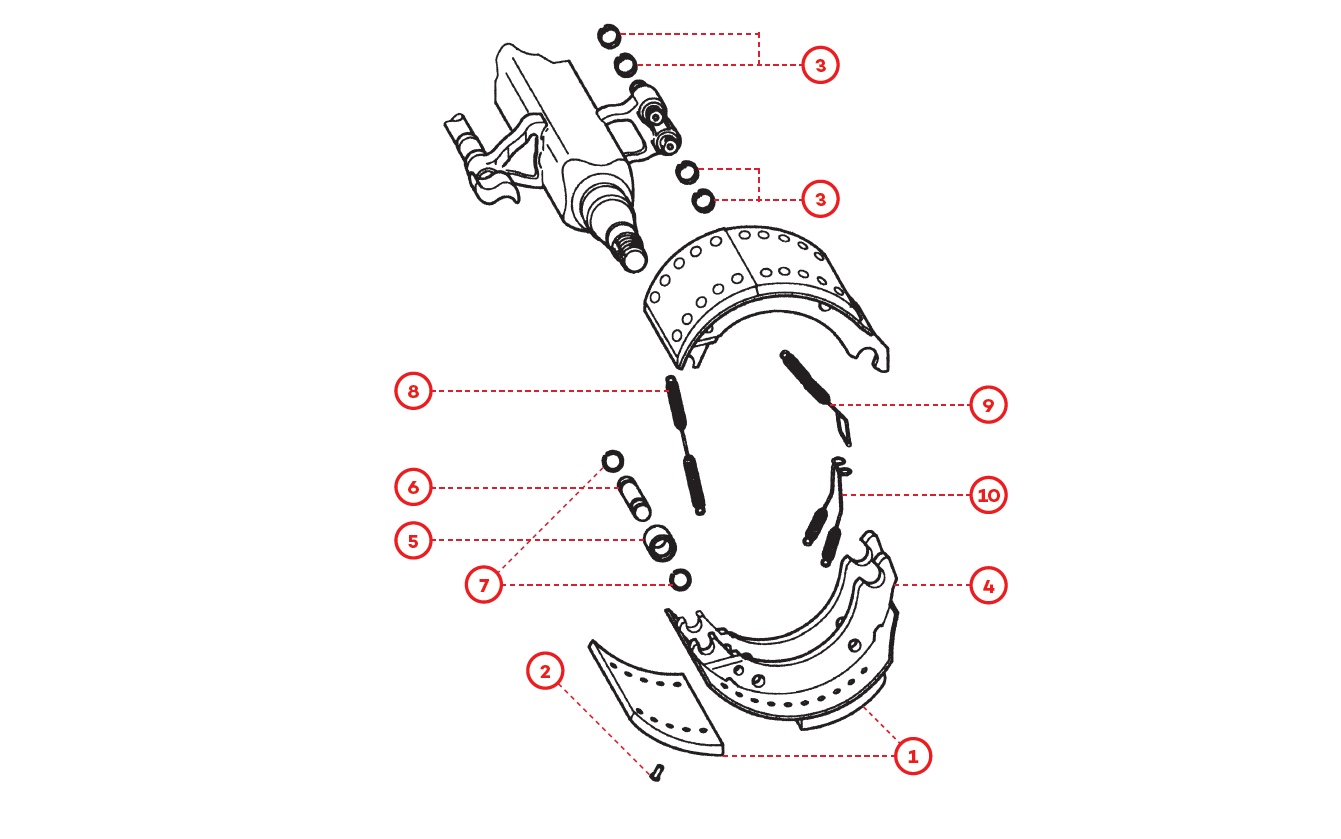

Parts Diagram
Click on a numbered part in the diagram to jump to its details below
Parts List
12 parts| # | Image | Part Details | Add to Order |
|---|---|---|---|
| 1 |
|
R2141 BRAKE LINING SINGLE BC37/1+1 WVA19094
Part #: R2141
|
|
|
|
R2142 BRAKE LINING SINGLE BC37/1+2 WVA19094+2
Part #: R2142
|
||
|
|
UNBL0003 BC37/1 BRAKE LINING SET WVA19094
Part #: UNBL0003
|
||
| 2 |
|
R0981 BOX 1000 8X15 RIVET DIN7338B ST
Part #: R0981
|
|
| 3 |
|
A9599 C CLIP EQUIV BPW
Part #: A9599
|
|
| 4 |
|
A3025 U/L BRAKE SHOE 420X200 Q/C 95 SERIES
Part #: A3025
|
|
| 5 |
|
A9598 BRAKE SHOE SLEEVE 0533144020 EQUIV
Part #: A9598
|
|
| 6 |
|
A9597 BRAKE SHOE PIN 0308475240 EQUIV
Part #: A9597
|
|
| 7 |
|
A9596 RETAINER 0331070150 EQUIV
Part #: A9596
|
|
| 8 |
|
A9595 Brake Spring 34x5x268mm Bright Finish
Part #: A9595
|
|
| 9 |
|
KLTH0054 RETENTION SPRING BPW 0339733070 EQUIV
Part #: KLTH0054
|
|
| 10 |
|
KLTH0055 RETENTION SPRING BPW 0339733060 EQUIV
Part #: KLTH0055
|
