_td_SAF_LOW_LOADER_WRZ11030_SJ22-23 SAF Low Loader WRZ11030/WRZM11030 (SJ22-23)

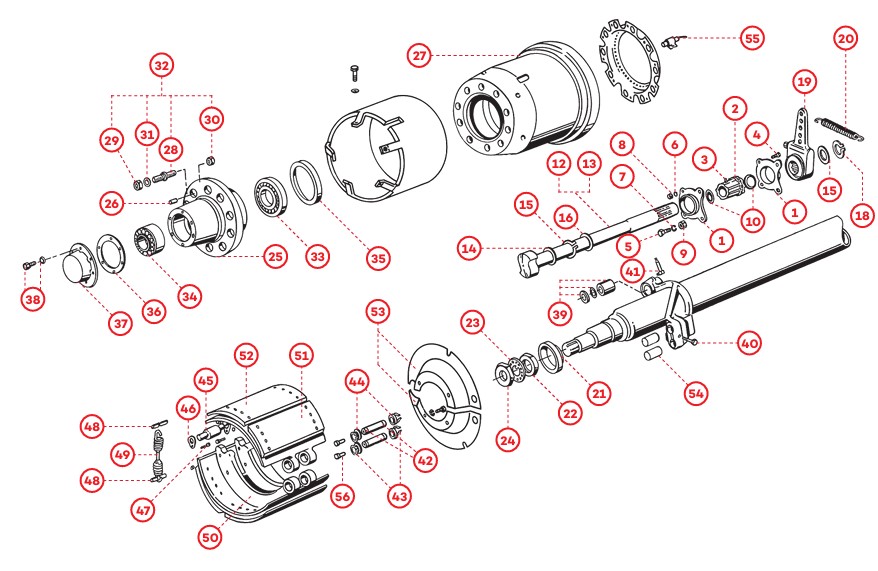

Parts Diagram

Click on a numbered part in the diagram to jump to its details below

Parts List

55 parts

#	Image	Part Details	Add to Order
1		A5710 CAM SUPPORT HOUSING (SINGLE) Part #: A5710
4		A1375 BOLT AND WASHER ASSY M8 X 16MM Part #: A1375
5		A5711PK PKT OF 4 M16 X25 SET FOR A5710 Part #: A5711PK
6		A5393 M8 WASHER Part #: A5393
7		A5712PKT PKT M16 SPRING WASHER FOR A5710 Part #: A5712PKT
8		A5392 M8 NUT FOR A5390/A5710 Part #: A5392
9		A5713 M16 PLAIN NUT TO FIT A5710 Part #: A5713
10		A1560 O-RING (FOR A1550) Part #: A1560
12		A5350 CAMSHAFT RH SAF O/A LENGTH 569.5MM Part #: A5350
		A5352 CAMSHAFT RH SAF O/A LENGTH 634MM Part #: A5352
13		A5351 CAMSHAFT LH SAF O/A LENGTH 569.5MM Part #: A5351
		A5353 CAMSHAFT LH SAF O/A LENGTH 634MM Part #: A5353
14		A1590 CAMSHAFT SPACER WASHER THICK Part #: A1590
15		A1530 CAMSHAFT BEVEL WASHER 39MM ID Part #: A1530
16		A1540 CIRCLIP FOR CAMSHAFT Part #: A1540
18		A1541 CIRCLIP Part #: A1541
20		A1848 Slack Adjuster Spring 26x2.8x148mm Part #: A1848
21		A5140 RING Part #: A5140
23		A5470 LOCKWASHER EQ-SAF 1345000800 Part #: A5470
24		A5480 LOCKNUT EQ-SAF 1011003900 Part #: A5480
25		A5540 HUB Part #: A5540
		A5541 HUB 10 STUD L/L SAF TYPE Part #: A5541
27		C2620 DRUM TO REPL SAF 1064019700 Part #: C2620
		C2621 DRUM TO REPL SAF 1064014900 Part #: C2621
28		A5002 WHEEL STUD M22X2 RHT 113MM TWIN WHEEL Part #: A5002
		A5004 WHEEL STUD M22X1.5 RHT 111MM ISO TWIN Part #: A5004
29		A1136 Wheel Nut M22X1.5 RHT 32mm A/F Part #: A1136
		A5040 WHEELNUT M22X2MM D=25MM AF=32MM Part #: A5040
30		A5031 BACK NUT M22X1.5MM RH D=18MM AF=32MM Part #: A5031
		A9641 BACK NUT M22X2MM RH D=17MM AF=32MM Part #: A9641
31		A2020 CONE (OUTER FOR A2000). Part #: A2020
32		A5000 WHEEL BOLT ASSY Part #: A5000
		A5006 WHEEL BOLT ASSEMBLY Part #: A5006
33		A1790 WHEEL BEARING 218248/218210 Part #: A1790
34		A1720 Wheel Bearing 33213 Part #: A1720
35		A1904 Oil Seal to replace 21200321A Part #: A1904
37		A5070 HUB CAP Part #: A5070
40		A5072 BOLT Part #: A5072
41		A1544 GREASE NIPPLE Part #: A1544
42		A5240 ANCHOR PIN Part #: A5240
		A8263 ANCHOR PIN Part #: A8263
43		A1606 WASHER FOR ANCHOR PIN (A1600) Part #: A1606
44		A1650 CIRCLIP FOR A1600 Part #: A1650
45		A1615 Cam Roller 1.1-4 Diameter Part #: A1615
46		A8235 PAIR OF RETAINING PLATES Part #: A8235
47		A5210 RETAINER BOLT & NUT X 2 Part #: A5210
		A5211 BOLT C/W NUT Part #: A5211
48		A5610 SPRING RETAINING PIN Part #: A5610
		A5611 CROSS STRAP Part #: A5611
49		A5600 BRAKE SPRING 29/5/164MM Part #: A5600
50		A3017 BRAKE SHOE 300X200 REPL SAF Part #: A3017
		A3019 BRAKE SHOE 300X200 REPL SAF Part #: A3019
51		UNBL0041 SJ22/23-1 BRAKE LINING SET WVA19516/WVA19515 Part #: UNBL0041
53		A5075 DUST COVER SET 300X200 REPL. SAF Part #: A5075
56		A5439 ANCHOR PIN PLUG Part #: A5439
