_td_MERITOR_TE9000_HUB Meritor TE9000 Hub & Drum

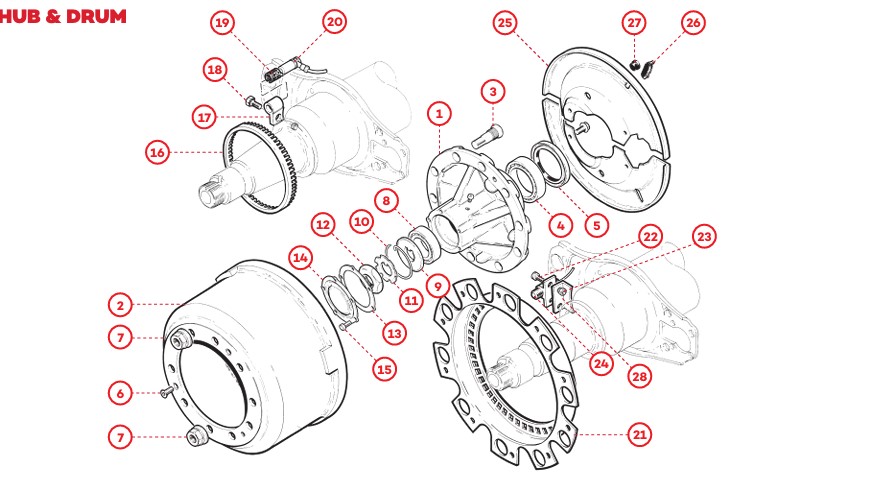

Parts Diagram

Click on a numbered part in the diagram to jump to its details below

Parts List

29 parts

#	Image	Part Details	Add to Order
1		A1882 HUB ASSEMBLY REPL 9000 SERIES Part #: A1882
2		C2080 BRAKE DRUM EQUIV TO 21220183 Part #: C2080
3		A1741 WHEEL STUD M22X1.5 RHT 81MM UH ISO SINGLE WHEEL Part #: A1741
		A1742 WHEEL STUD M22X1.5 RHT 97MM UH ALLY ISO SINGLE WHEELS Part #: A1742
4		A8907 Wheel Bearing 33116 Part #: A8907
5		A1807 OIL SEAL EQUIV TO 21220158 Part #: A1807
6		A1856 DRUM RETAINING SCREW R O 9000 Part #: A1856
7		A1136 Wheel Nut M22X1.5 RHT 32mm A/F Part #: A1136
8		A8900 Wheel Bearing 32310 Part #: A8900
9		A1691 WK RET/WASHER TO SUIT RO9000 Part #: A1691
10		A1892 BEARING RET CLIP RO 9000 Part #: A1892
11		A1692 LOCKWASHER REPL RO9000 Part #: A1692
12		A1693 RETAINING NUT EQUIV RO9000 Part #: A1693
13		A1802 RUBBER H/CAP GASKET (9000) Part #: A1802
14		A1833 HUB CAP RO 9000 HUBO GREASE Part #: A1833
		AP821 HUB CAP TE ROR Part #: AP821
15		A1375PK PKT 10 BOLT AND WASHER ASSY M8 X 16MM Part #: A1375PK
16		MTEX0002 EXCITER RING 100T Part #: MTEX0002
17		KLTH0155 SENSOR MOUNTING BLOCK TE Part #: KLTH0155
18		KLTH0157 SCREW Part #: KLTH0157
19		DFABS0021 ABS SENSOR REP. BUSH Part #: DFABS0021
20		DFABS0003 ABS Sensor Angled 0.4m to suit DAF Part #: DFABS0003
22		A1858 BOLT SKIDCHEK R O 9000 Part #: A1858
23		A1857 LOCKNUT SKIDCHEK R O 9000 Part #: A1857
24		950364501 SENSOR STRAIGHT CABLE LENGTH 2.4M Part #: 950364501
25		A1855 DUST COVER SET 420X180 PRESSED A/B Part #: A1855
26		A1853 INSPECTION PLUG R O 9000 Part #: A1853
27		A1854 BLANKING PLUG R O 9000 Part #: A1854
28		KLTH0136 SENSOR MOUNTING BRACKET Part #: KLTH0136
