_td_MERITOR_U_TM_BMX_TM_T118-19 Meritor U, TM, & BMX TM Series O Brake (T118/19)

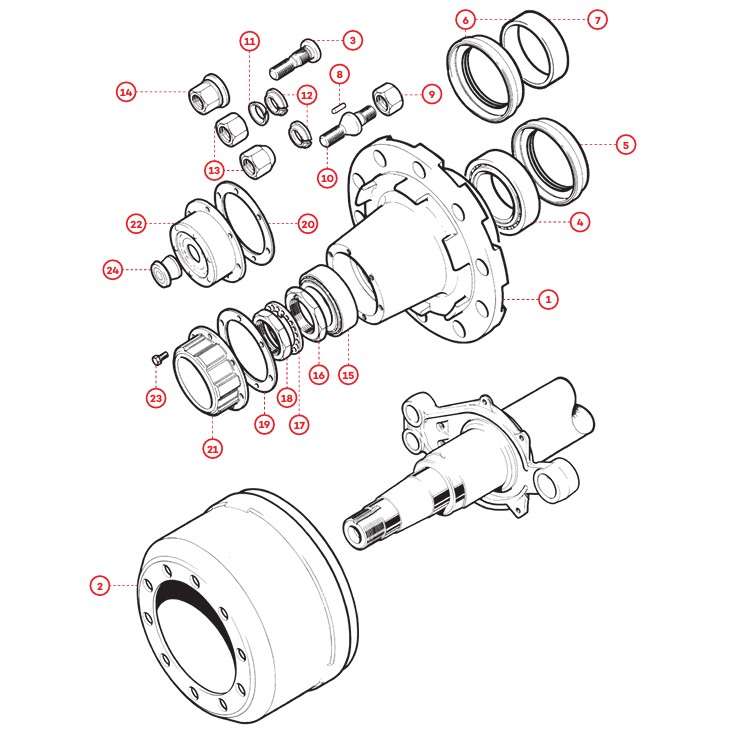

Parts Diagram

Click on a numbered part in the diagram to jump to its details below

Parts List

30 parts

#	Image	Part Details	Add to Order
1		A1760 HUB - 10 STUD (RO TYPE METRIC) Part #: A1760
		KLTH0038 10S METRIC HUB ASSY Part #: KLTH0038
3		A1730 WHEEL BOLT 7/8 BSF 93MM UH TWIN RH Part #: A1730
		A1740 WHEEL BOLT 7/8 BSF 93MM UH TWIN LH Part #: A1740
		A1787 WHEEL BOLT 7/8" RH BSF SINGLE Part #: A1787
		A1788 WHEEL BOLT 7/8" LH BSF SINGLE Part #: A1788
		A1789 WHEEL STUD M22X1.5 RHT 88MM UH ISO SINGLE WHEEL Part #: A1789
		A2000 WHEEL STUD M22X1.5 RHT 98MM UH ISO SINGLE/TWIN WHEEL Part #: A2000
4		A1790 WHEEL BEARING 218248/218210 Part #: A1790
5		A1902 OIL SEAL RED Part #: A1902
		A1903 OIL SEAL GREEN Part #: A1903
		A1904 Oil Seal to replace 21200321A Part #: A1904
6		A1800 OIL SEAL Part #: A1800
11		A2020 CONE (OUTER FOR A2000). Part #: A2020
12		A1750 WHEEL CONE (FOR A1730-A1740) Part #: A1750
		A2010 INNER CONE (USE WITH A2000) Part #: A2010
13		A1120 WHEEL NUT 7/8" RH D=27MM AF=33MM Part #: A1120
		A1130 WHEEL NUT 7/8" LH D=27MM AF=33MM Part #: A1130
		A1990 WHEELNUT M22X1.5MM D=27MM AF=32MM Part #: A1990
14		A1136 Wheel Nut M22X1.5 RHT 32mm A/F Part #: A1136
15		A1720 Wheel Bearing 33213 Part #: A1720
16		A1710 ADJUSTMENT NUT (METRIC) Part #: A1710
17		A1700 LOCKWASHER ( METRIC) Part #: A1700
18		A1690 LOCKNUT (METRIC) Part #: A1690
19		A1680 GASKET FOR HUB CAP (A1820) Part #: A1680
20		Z1042 GASKET (OIL FILLED) Part #: Z1042
21		A1820 HUB CAP Part #: A1820
22		A1821 STEMCO TYPE HUBCAP Part #: A1821
23		A1375 BOLT AND WASHER ASSY M8 X 16MM Part #: A1375
24		A1826 PLUG (FOR A1821) Part #: A1826
